Haida M10 and Red-Diamond test review - Part 2

Author: Jenny Cameron

Haida M10 round “drop-in” circular polariser filter

My favourite of all the filters has always been the CPL. A vital piece of kit every landscape photographer should have and something which cannot be replicated in post processing. I rarely shoot without – it’s the perfect light manager. And let me tell you, Haida`s new M10 round “drop-in” CPL will never be off my lens.


I was curious to test if any slight vignette was present, and I can happily confirm that there is none at all, even pushing it through a tough test at my widest 16mm on a full frame camera. It gives amazing contrast, and cuts through some of the haze, especially on the clouds and the polarisation is visible in the sky producing some great detail. Removed almost all the unwanted glare and the see-through effect is well achieved on the water. Added some beautiful saturation which gives an overall instant pop to the image. Always remember with any filter – it brings into the equation a fourth dimension to the exposure triangle. With a CPL you will generally lose between 1-2 stops of light. As you can see in the comparison exif data below, I have lost around 1.5 stops.


Inserting the round “drop in” CPL into the M10 filter holder is the fastest I’ve ever used, never mind witnessed. It simply drops between the holder and lens creating a perfect seal from any stray light. It’s almost like gravity does the work for you –  once you hear the click it’s locked in place. There is a three gear linkage design on the mount which rotates independently and very smoothly. Once you start turning the adjustable black dial which is centrally placed on the top of the filter, you’ll instantly see the polarisation intensity on your live view screen. I tend to always rotate a CPL 360 degrees first to check the availability of contrast, saturation, and reflection. The strongest effect takes place at an angle of 90 degrees from the sun, ie make sure your line of sight is perpendicular to the direction of the sun. The filter is easily removed or exchanged by gently squeezing the red plastic tabs on the top and lifting it out without disturbing your composition.

sliding in M10 round CPL into M10 filter holder.jpg

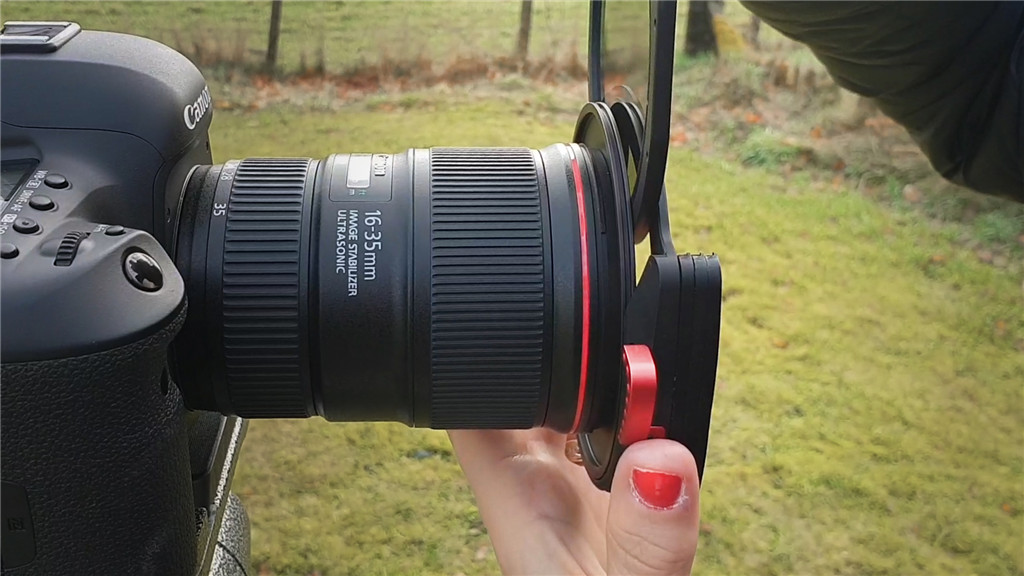

Inserting M10 round “drop-in” Circular Polariser (cpl) filter into M10 filter holder

Constructed from high quality optical glass the same as the Red Diamond series, each filter has ten layers of anti-reflective coatings, is shock-proof and scratch-proof, provides the best clarity, includes the famous nano multi-coating to reduce reflection, waterproof (meaning any droplets of water literally roll off like beads, no ugly smears) and the dreaded fingerprints wipe off easily with a soft microfibre cloth.


I have to say how solid it feels, plus it’s very fast and easy to use. In the past, CPLs I’ve used can be fiddly, hard to screw on especially when it’s freezing cold, you’re up at silly o’clock waiting for sunrise and half asleep. Haida have really listened to their customers and produced this truly clever design making our life so much easier. It’s an absolute pleasure to work with.


The round “drop in” filters are available in a selection of: ND 0.9, 1.8 3.0, 4; CPL; Clear-night; GND-0.9 1.2; ND+CPL 0.9 and 1.8.


Images below showing straight-out-of-camera (Canon 5d mark iv and Canon 16-35mm USM L Lens) @16mm with no filter and with Haida M10 “drop-in” CPL filter. No post processing on either other than lens correction in Lightroom. Demonstrating how the CPL has retained every bit of sharpness.


Without filter = ISO 100, F18, 1/13 – With Circular Polariser filter = ISO 100, F18, 1/8 second

Finally post processed in Adobe Creative Cloud.

edited with m10 drop in round CPL (jpeg).jpg

Location – Loch Assynt, Sutherland. Scotland

Haida Red Diamond Medium

亚克力插页15x10cm b.jpg

The Red Diamond filter I am testing is a medium 0.9 equaling 3 Stops. Rectangle in shape and sized 100mm x 150mm, providing more flexibility to move the filter up or down within the holder for ultimate control, homogeneous graduated blending from light to dark and endless creative possibilities. I really enjoyed using this filter in combination with the M10 filter holder. It’s fun the way you can rotate the holder if you want to darken the sky on one side or turn it upside down if you’re looking over bright highlighted water.

sliding in red diamond medium with M10 round CPL in back. Feb 2019.jpg

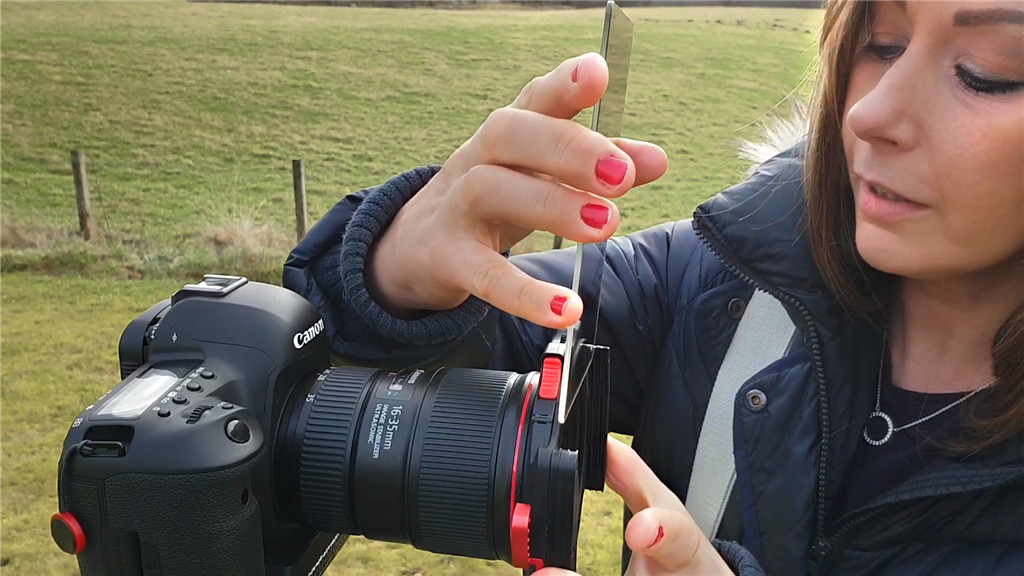

Inserting Red Diamond medium 0.9 into M10 filter holder with M10 round “drop-in” cpl filter in the rear compartment


I predict this latest series from Haida becoming “The big daddy” of them all for landscape photographers the world over. Haida named this new series “Red Diamond” as they’re amongst the strongest diamonds in the world, therefore being the strongest of all Haida filters.


-What makes this series stand out from its predecessor and other brand filters are listed as follows:

-Shock resistant, low risk to any accidental damage.

-Scratch resistant, the perfect partner in demanding weather.

-Zero colour cast.

-Waterproof, oil and fingerprint proof Nanopro coated surface.

-Improved optical glass.

-R5 rounded corners – makes it easier to slide in and out of the filter holder, no sharp corners.

-K9 optical glass.

-True colour.

-Ultra-thin nano multi coating.

-Easy to clean.

-Double the strength of other glass filters whilst at the same time retaining ultimate sharpness.

-Still retaining 2 mm in thickness making it compatible with the Haida 100-Pro filter holder and other brands the same size.

-The Red Diamond series is double the strength of a normal glass filter. You may have seen online the Haida Red Diamond drop test video? Where it’s thrown onto a concrete floor and no sign of damage to the filter. If you are accident prone this would be the perfect filter series for you.


Images below showing straight-out-of-camera (Canon 5d mark iv and Canon 16-35mm USM L Lens) @16mm -With-without-Red Diamond medium 0.9 (3 stops). No post processing on either, other than lens correction in Lightroom.


Without filter = ISO 100, F14, 1.1 sec – With Red Diamond medium 0.9 = ISO 100, F14, 3.1 sec

Finally post processed in Adobe Creative Cloud

Edited, red diamond medium 0.9 (jpeg for web).jpg

Location – Lochen on a private Highland estate.

M10 round “drop-in” 3.0 ND (10 Stop) Filter


The round “drop in” 3.0 ND, equalling 10 stops of light with its built in light barrier, is particularly useful for any super long exposures. Oftentimes in the past I’ve struggled with the issue of light leakage and had to resort to putting hats or cloths over the gap between filter and lens, not an ideal situation at all.


Before I started my love affair with Haida filters over a year ago, I was using Lee filters. My go-to neutral density filter was always the Big Stopper but more times out of ten the images produced had a slight purple tint and vignettes at wide angles. Although it’s easy enough to change in post processing, it is another job. All these wee jobs can mount up a lot, meaning less creative time and enjoyment in the great outdoors with your camera – and surely they’re the best parts?!


I was curious to test if any vignette were present, and I can happily confirm none at all was found. You would think attaching any filter over your lens would affect the level of sharpness, but it’s clear to see from my findings below that there is no loss of sharpness from corner to corner – it’s pin sharp. Absolutely no colour tint was found, making this one of the most neutral NDs I’ve ever come across. I particularly liked the design of the plastic holder that the round glass sits in, making it ultra easy to drop in and remove the filter holder without any disturbance to the composition. Just like the Red-Diamond filters, the M10 round “drop-in” series of filters are all made from the same grade optical glass and feature the same nanopro coatings, producing excellent image quality. It’s clear to see that Haida have really thought through every single part of the process and know the issues that can be caused in the field.


Images below showing straight-out-of-camera (Canon 5d mark iv and Canon 16-35mm USM L Lens) @16mm -With-without-M10 round “drop-in” N.D 3.0 (10-stop). No post processing on either other than lens correction in Lightroom.


Without filter = ISO 100, F14, 0.4 sec – With M10 “drop-in” ND 3.0 filter = ISO 100, F14, 130 sec

Finally post processed in Adobe Creative Cloud

edited-(jpeg) with m10 round drop-in nd3.0.jpg

I hope this provides you some useful information. Please feel free to ask me any questions.


“All rights reserved” © Jenny Cameron 2019
